LOA – LENGTH OVERALL |
20.46 m |
|
|
LWL – WATERLINE LENGTH |
18.18 m |
|
|
MAX BEAM |
5.40 m |
|
|
DRAFT |
3.20 m |
|
|
DISPLACEMENT (LIGHT) |
26.000 kg |
|
|
BUILD MATERIAL |
Scafo e coperta: sandwich con tessuti di vetro, impregnati con resina epossidica sottovuoto. Rinforzi in carbonio unidirezionale nelle zone sollecitate da alto carico. Hull: fibreglass sandwich with epoxy resin infused under vacuum Deck: fibreglass sandwich with epoxy resin infused under vacuum Unidirectional carbon reinforcements in high fatigue areas. |
|
|
BALLAST |
approx. 10.480 kg (fixed keel) |
|
|
SAIL PLAN (indicative) |
I = 26.00 m J = 7.40 m |
|
|
SAIL AREA 100% (indicative) |
approx. 225 m2 |
|
|
FUEL TANK |
1.100 l |
|
|
WATER TANK |
900 l |
|
|
ENGINE |
Volvo Penta D3 150 hp |
|
|
GENERATOR |
Onan 11 kW QD MDCBN 50 Hz (OPTIONAL) |
|
|
SERVICE BATTERIES |
720 Ah 24 V |
|
|
GENERAL CONCEPT |
Advanced Yachts |
|
|
DESIGNER |
Reichel-Pugh Yacht Design |
|
|
GENERAL PLANS, INTERIOR AND EXTERIOR STYLE |
Nauta Yachts |
|
|
STRUCTURAL ENGINEERING |
AMS - SP Gurit |
|
|
CERTIFICATION |
C.E. Classe A |
Impeccable Italian Elegance and Design

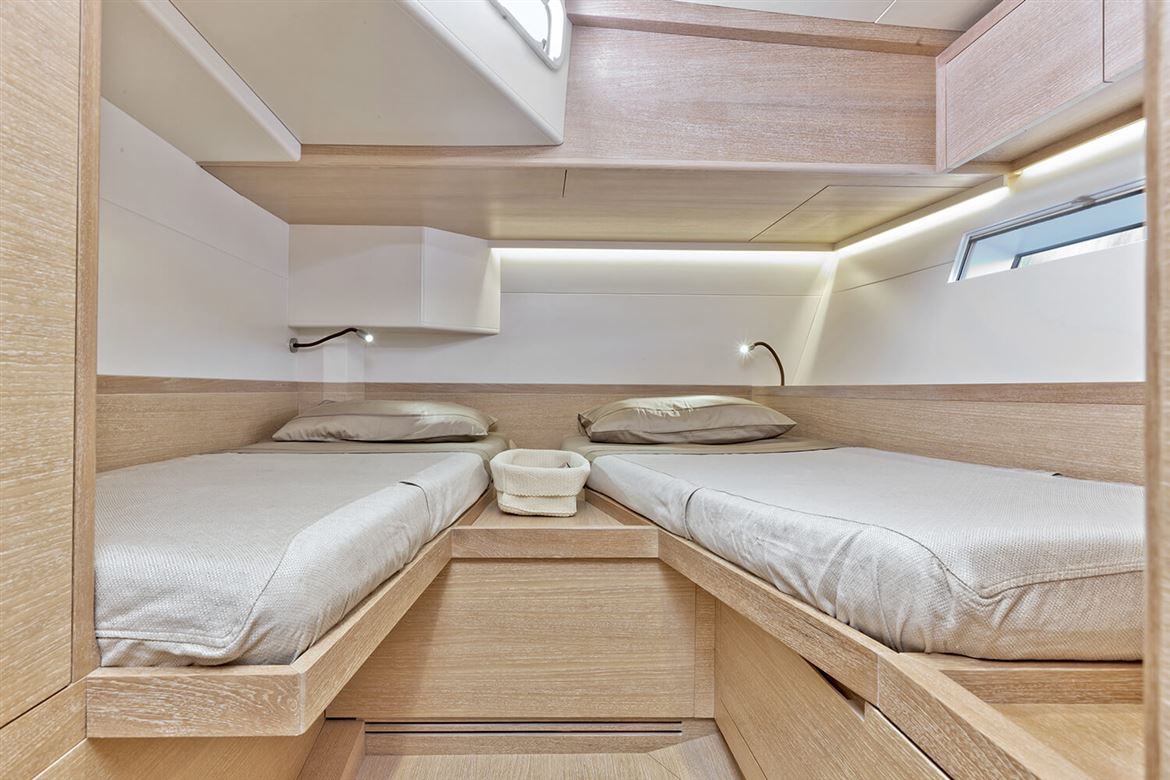

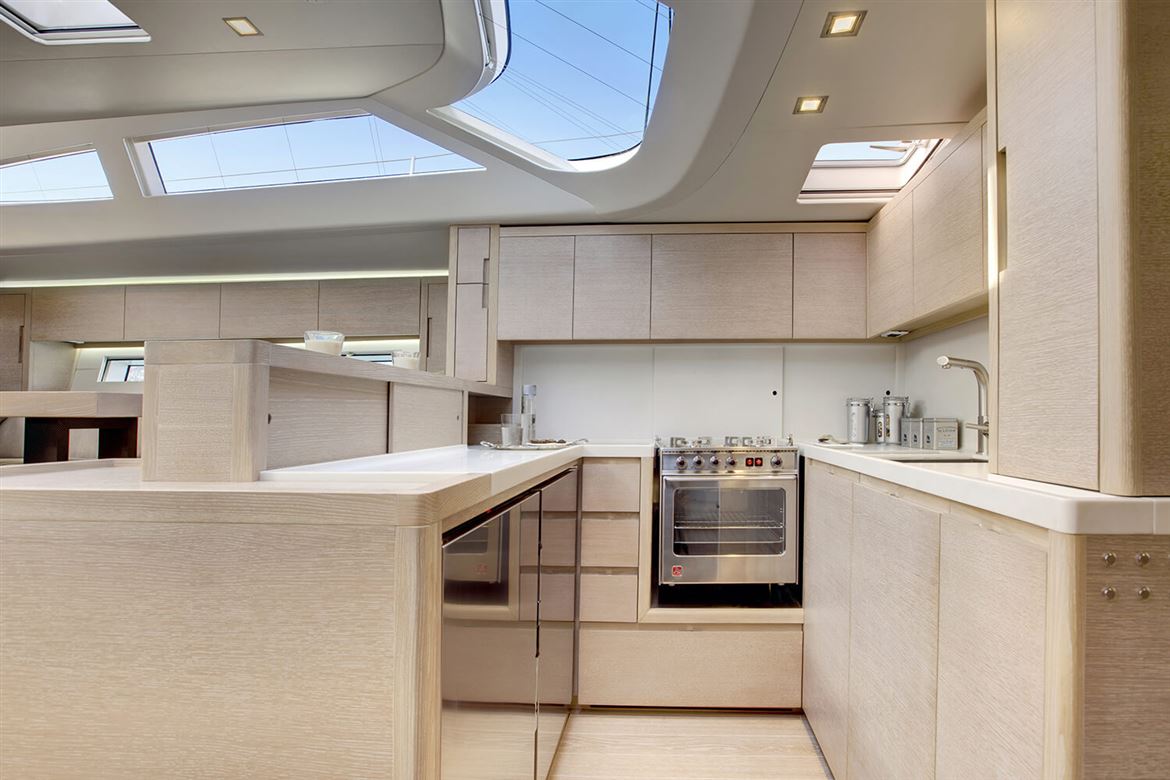

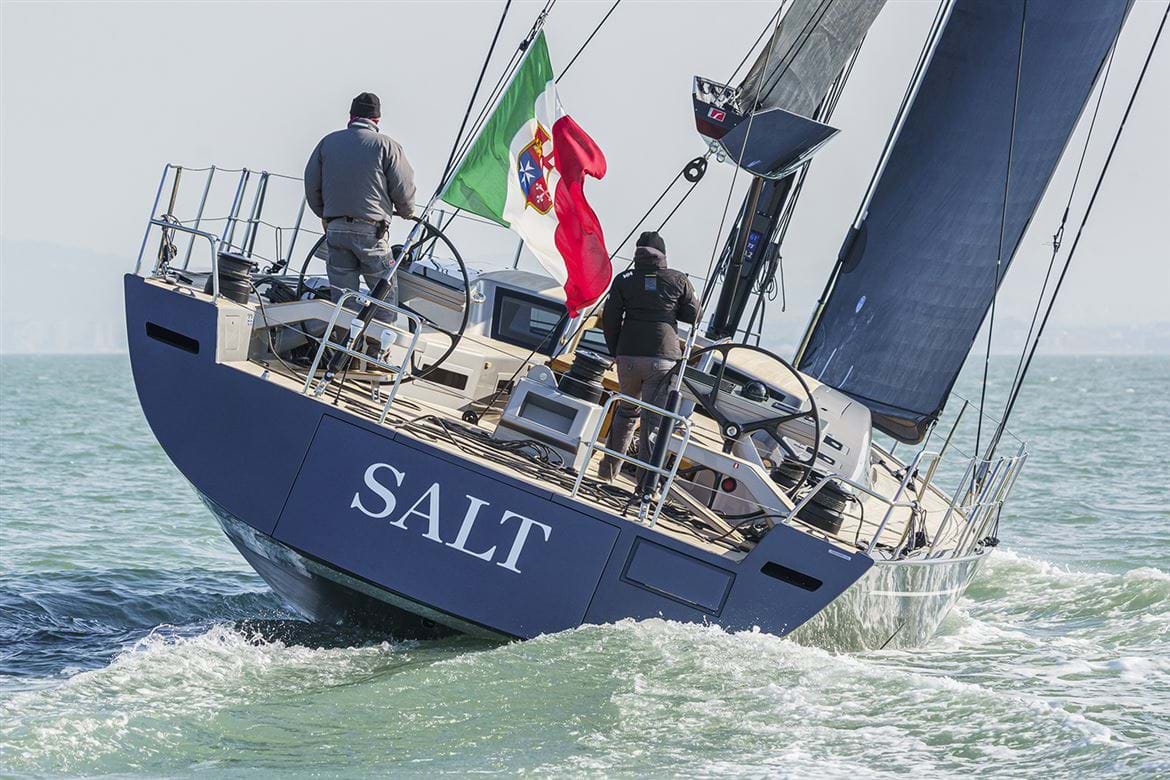

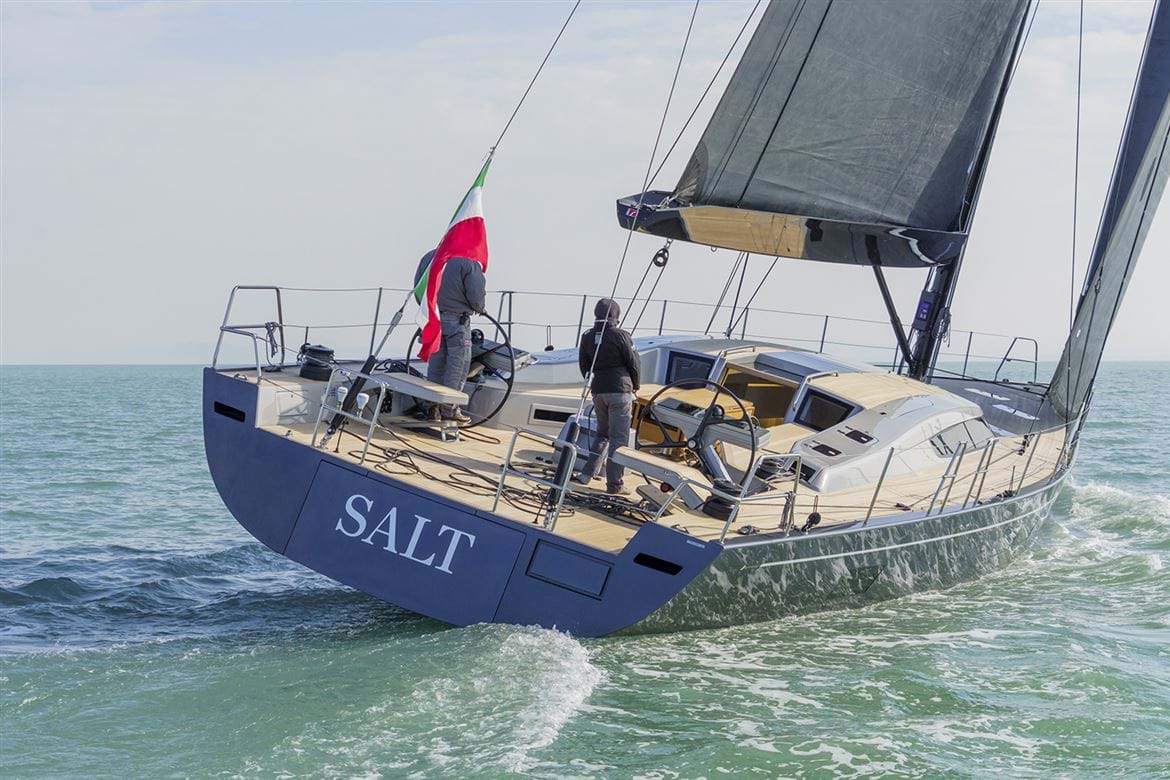

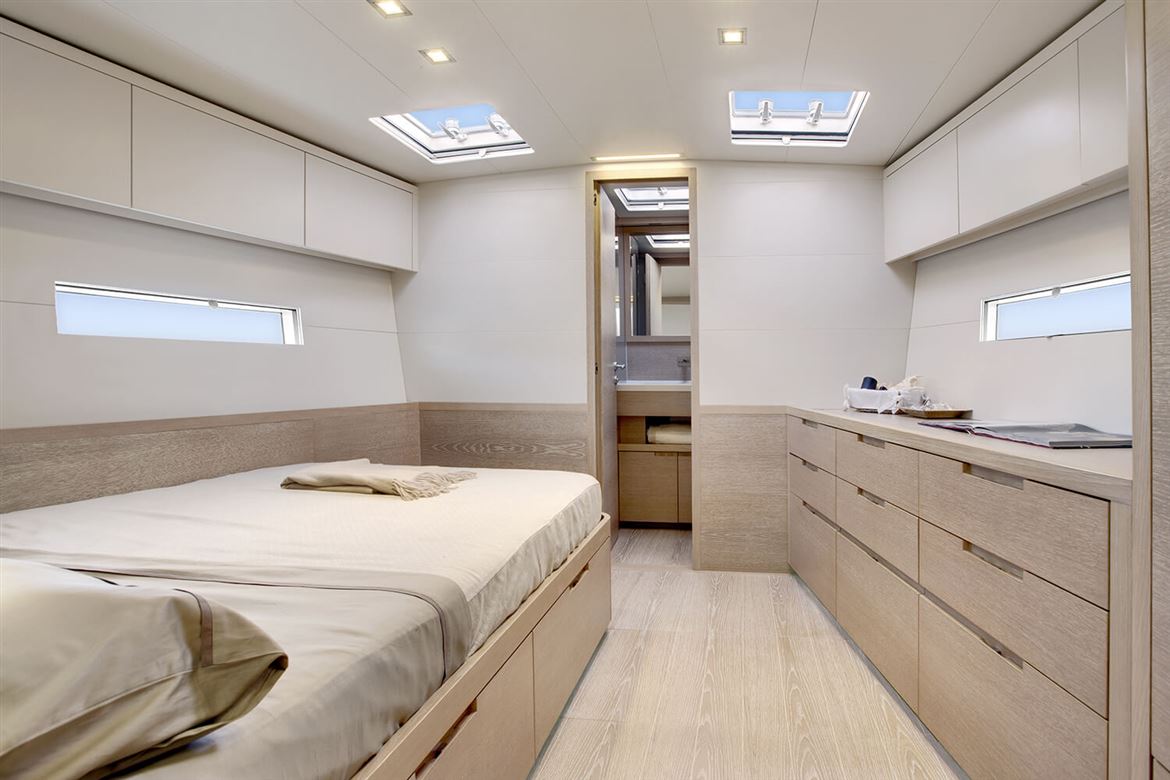

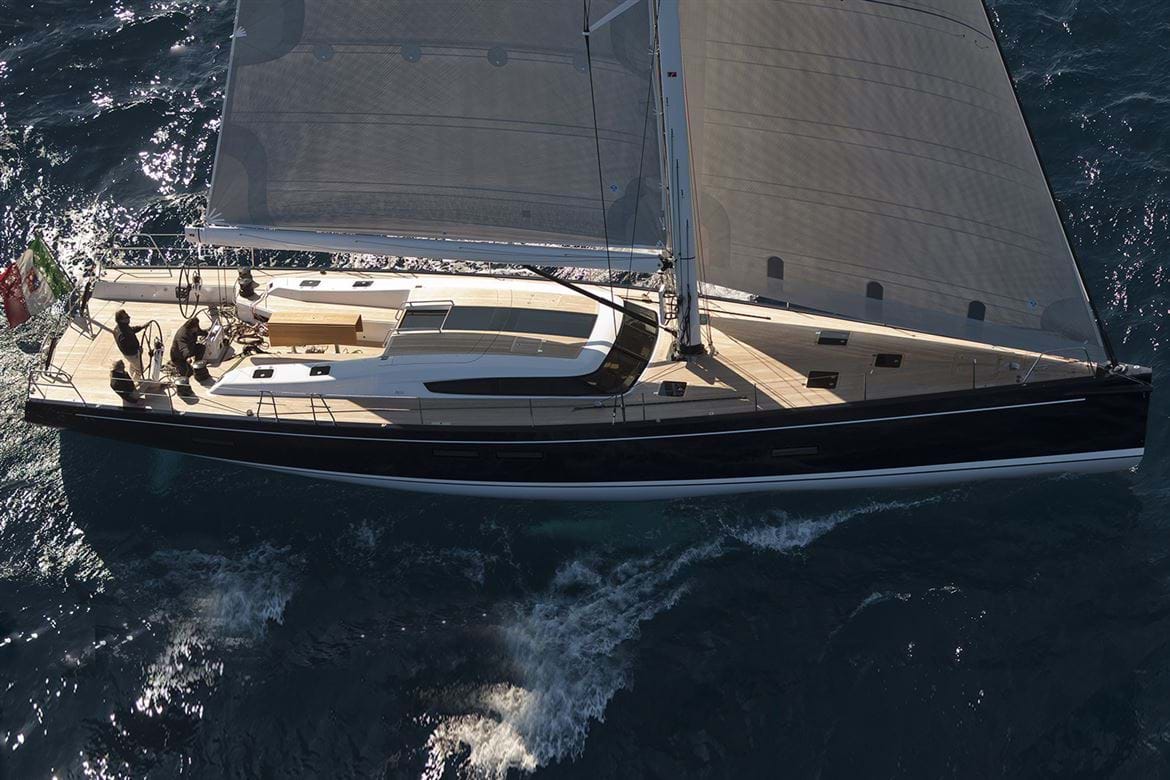

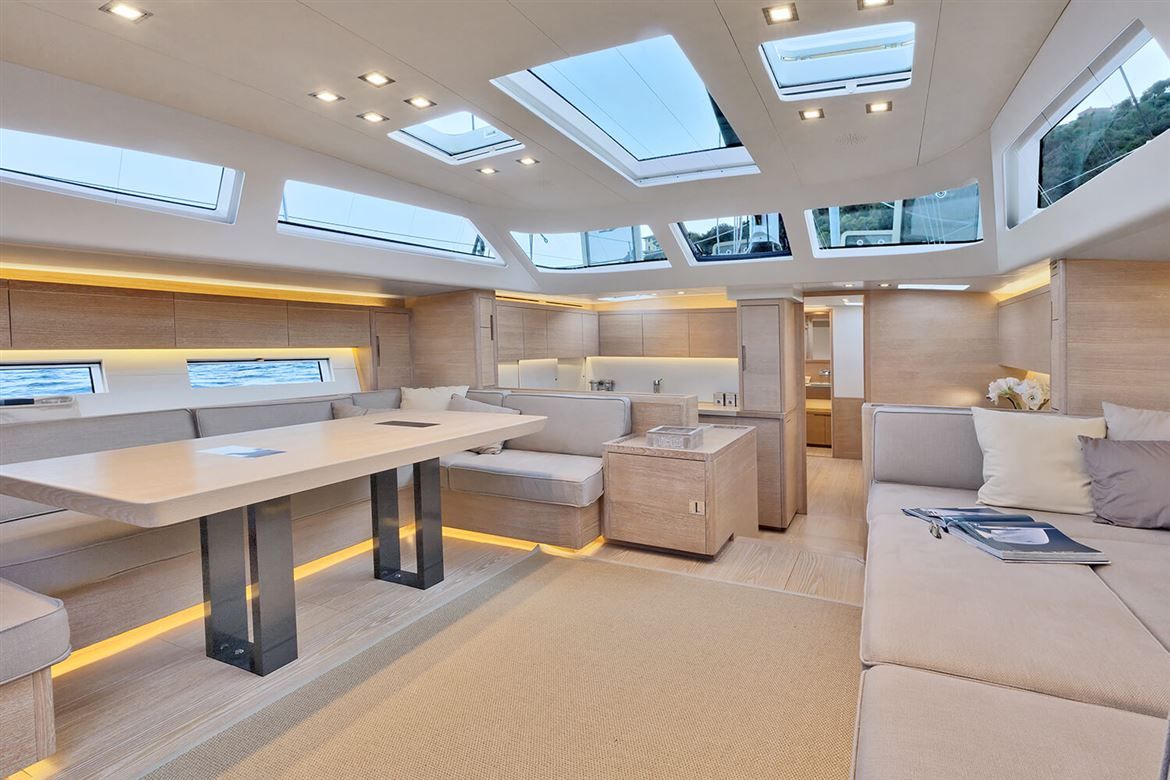

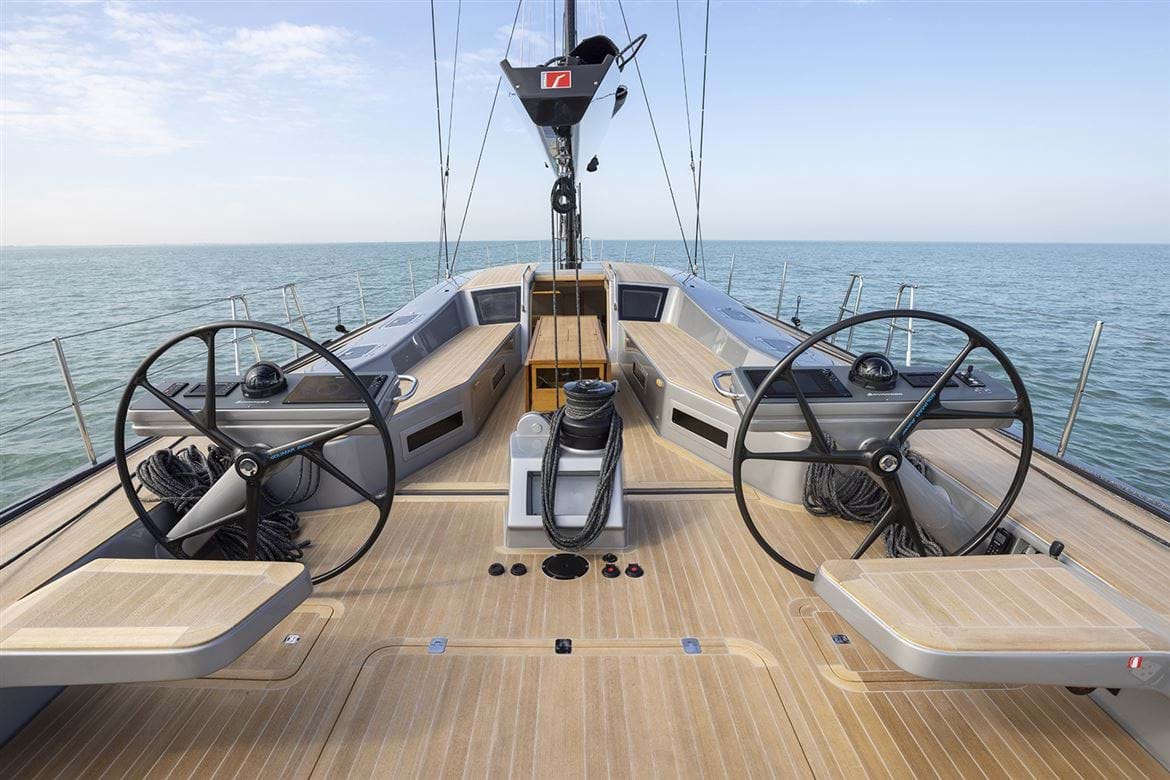

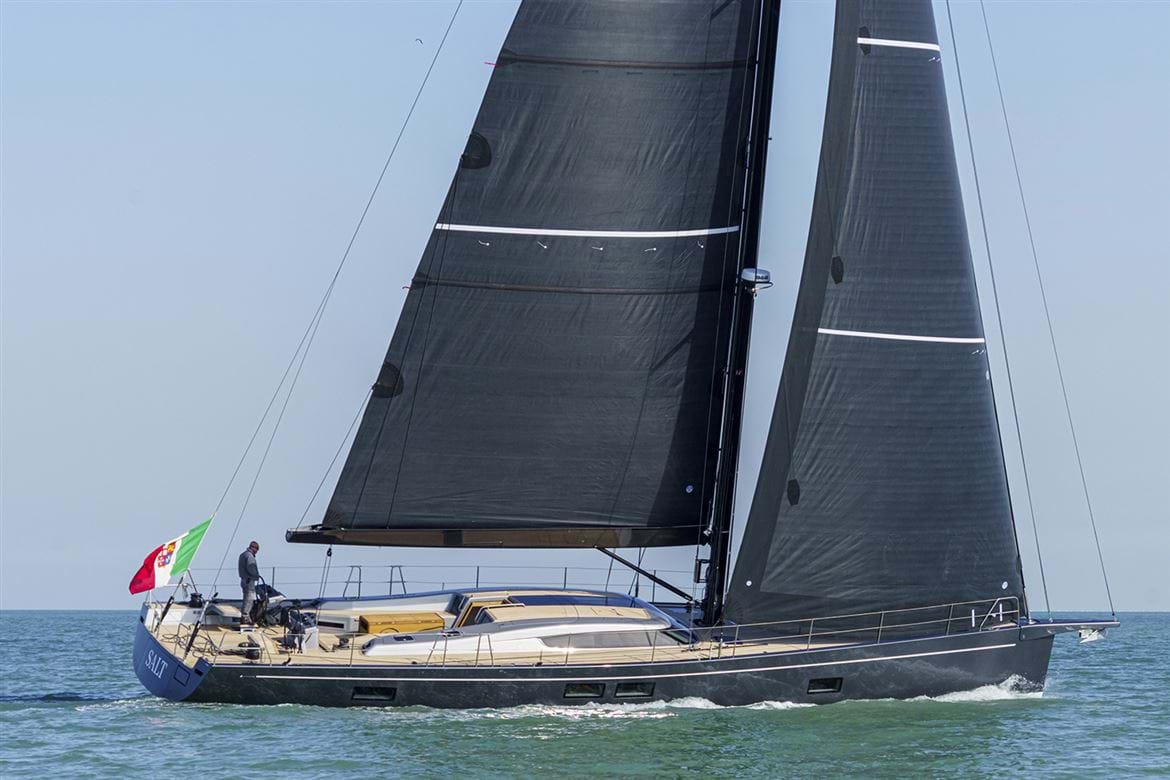

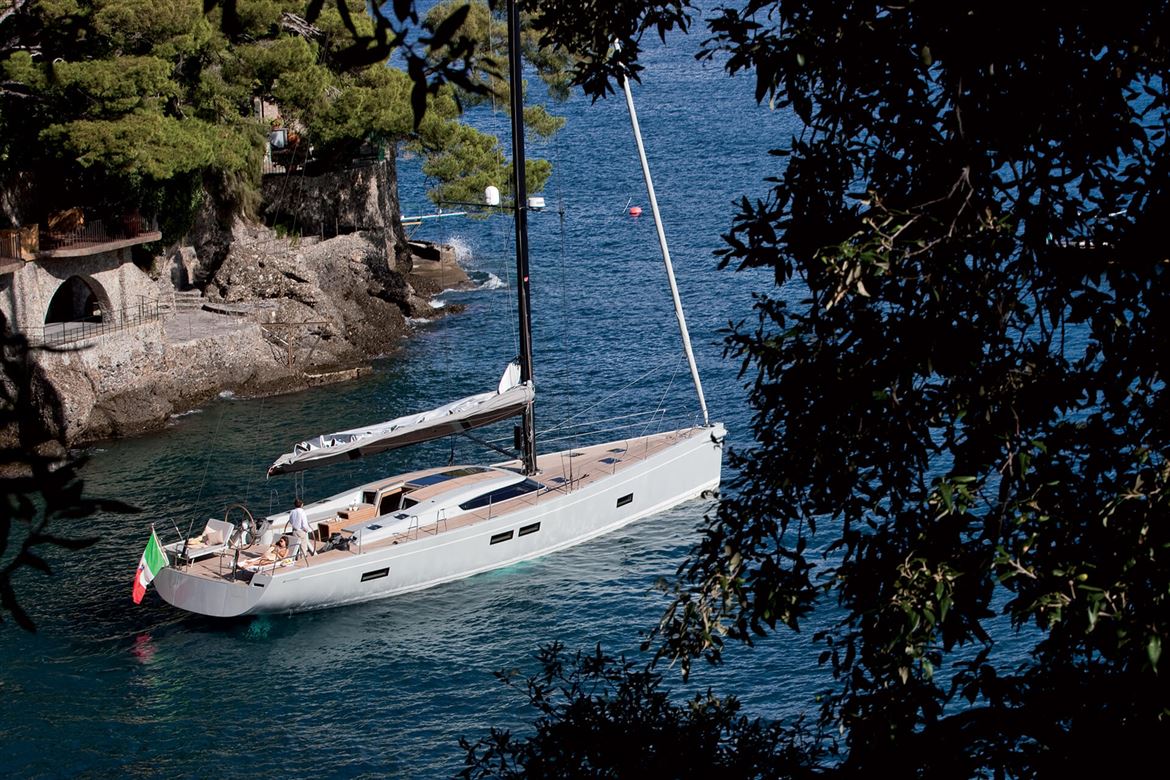

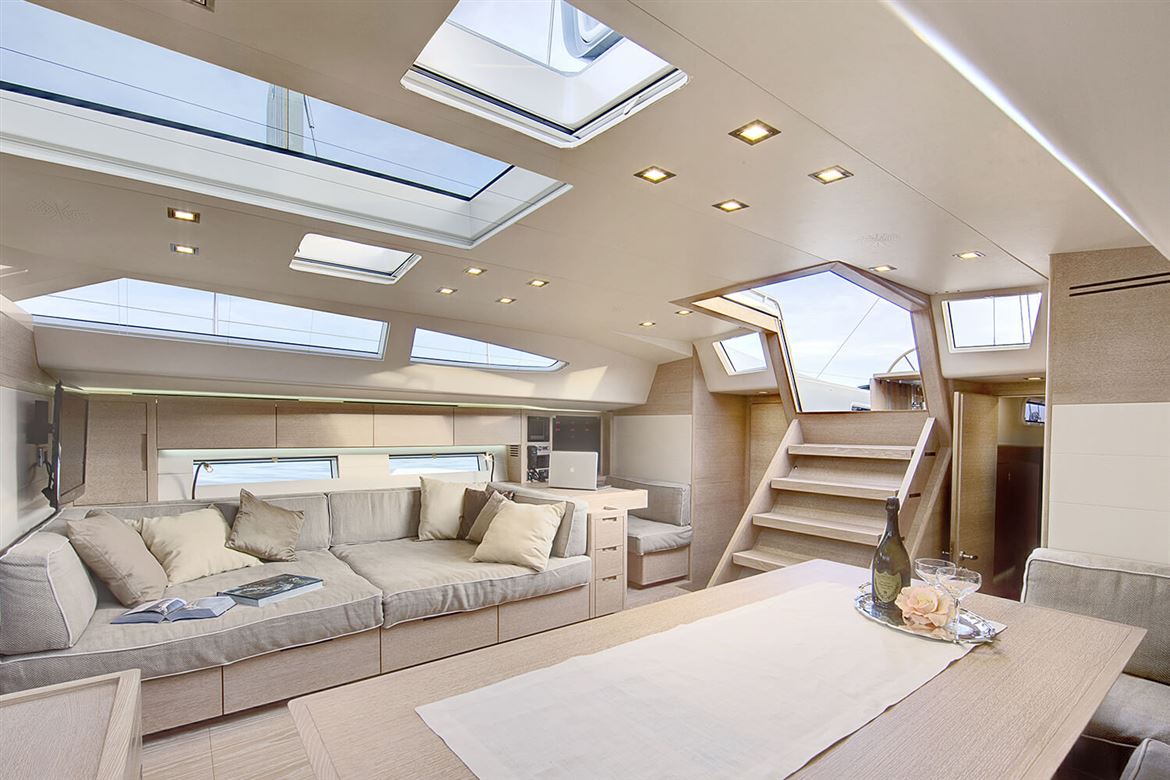

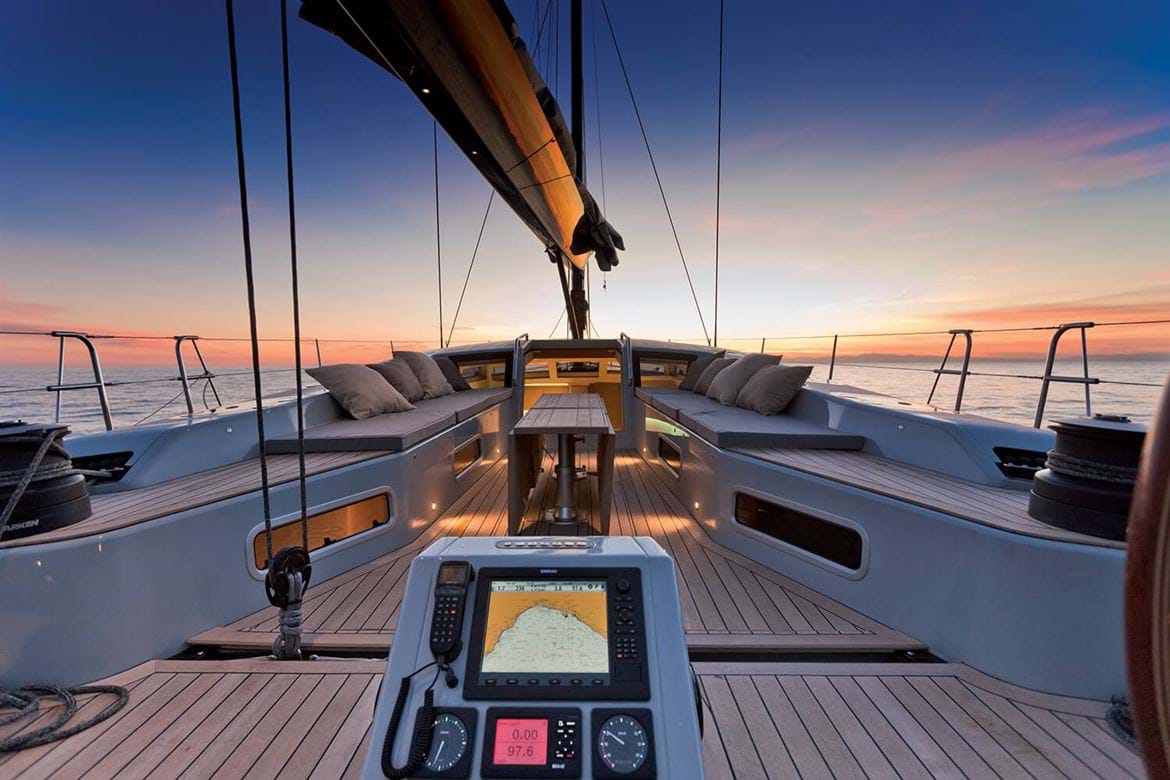

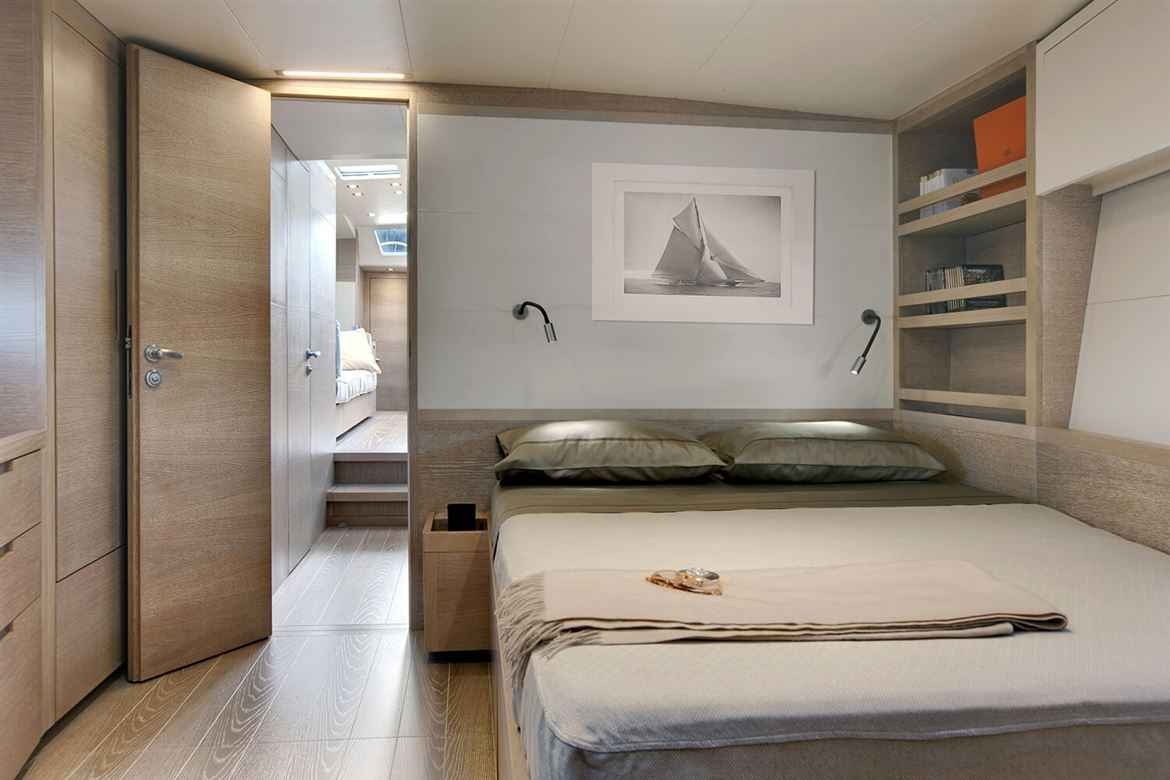

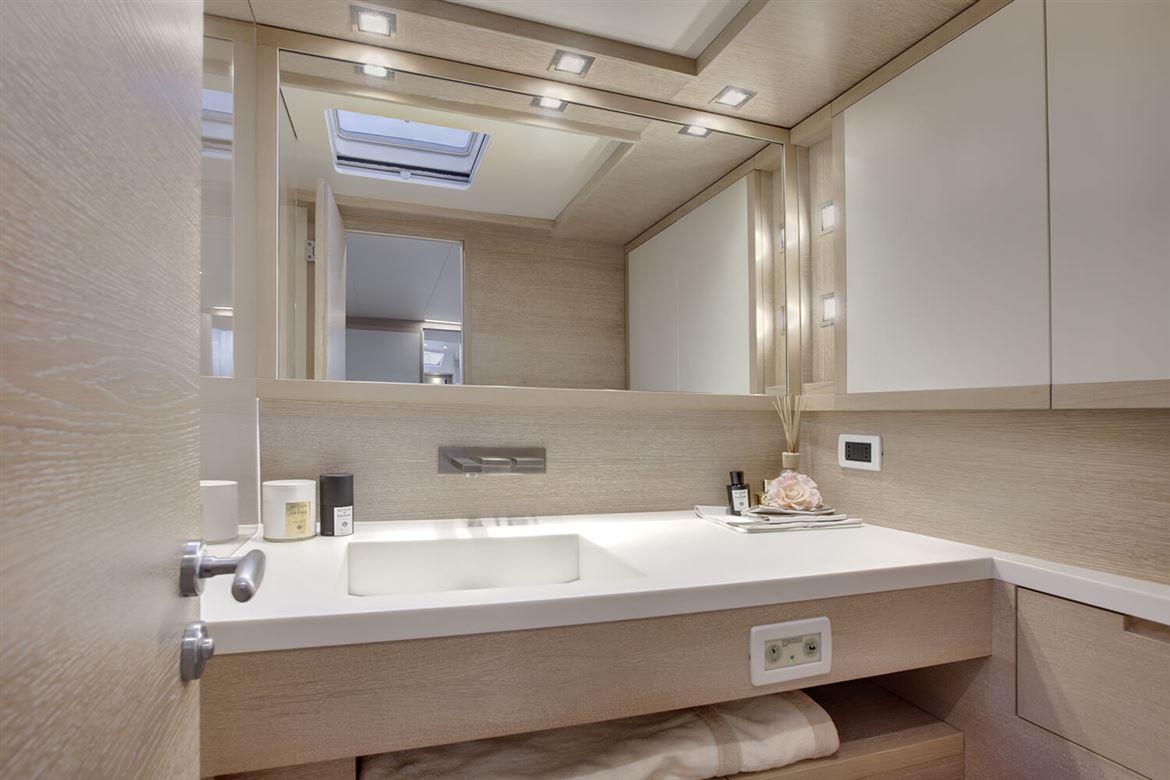

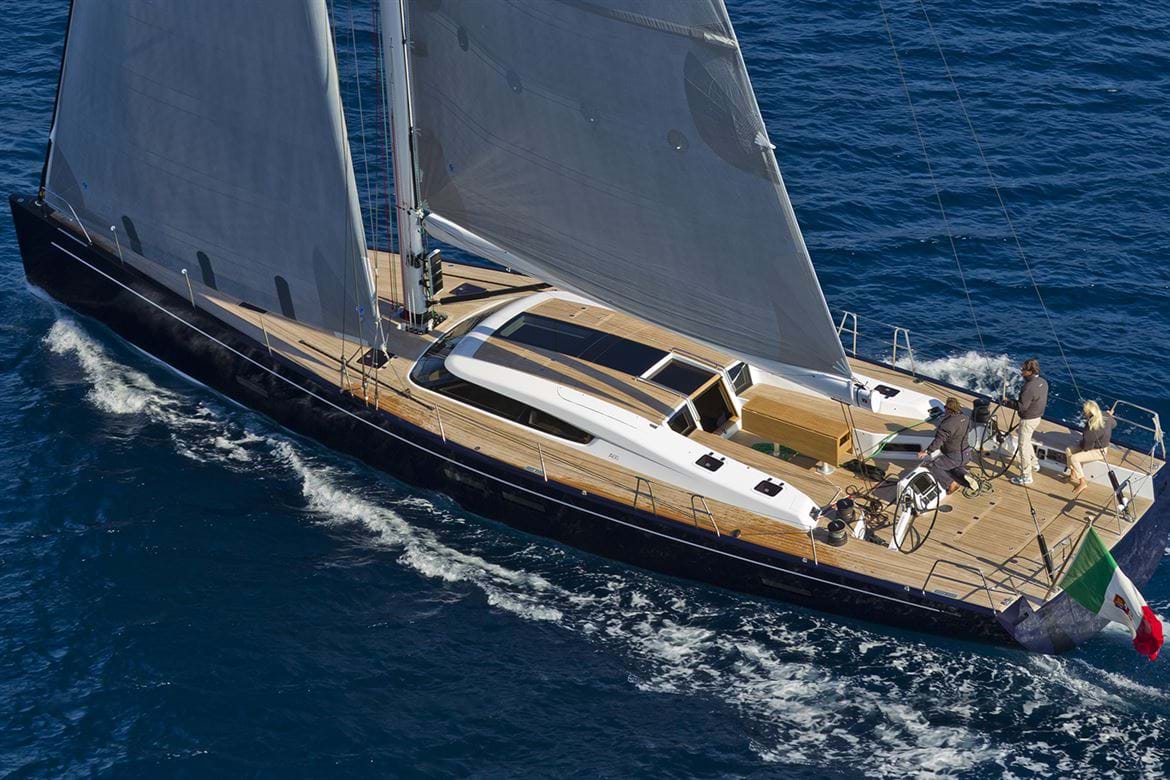

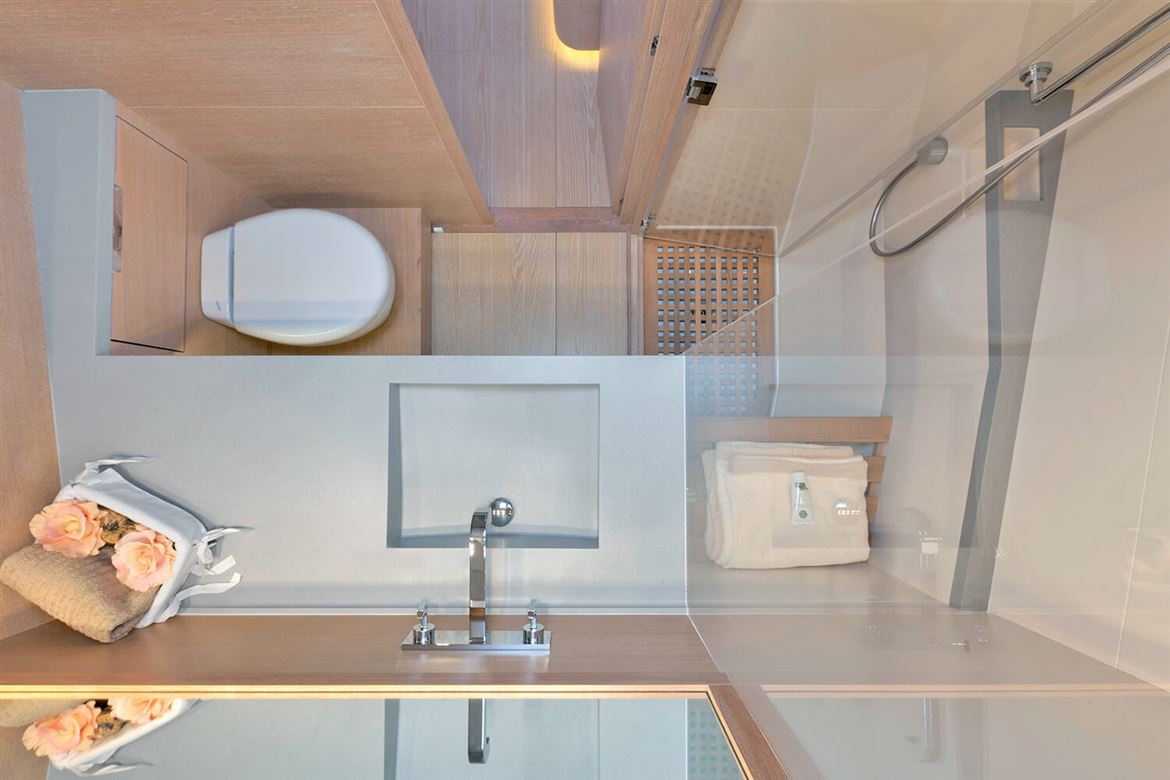

The A66 is brainchild of two world-class design studios: Nauta Design and Reichel/Pugh. Modernity, ease of handling and seduction are the key words for the design that was created for Advanced Yachts. A66 has been designed with an aggressive, new-generation hull shape that features large, load-bearing aft volumes and deck geometries that communicate a sense of speed and efficiency. The almost oversized cockpit evokes a relaxing, summer cruise atmosphere while the large glass surfaces on the coachroof make sailing truly enjoyable in any season. Below deck, a welcoming environment with a large, open space saloon and 360-degree wraparound windows has been created. Separate areas for different functions make life on board as comfortable as at home.
